Liquid Cooling Plate Thermal Simulation Case
Jan 03,2025
1. Hot design objective
- Design liquid cooling plates using simulation software to meet performance requirements, analyze in detail the pressure, flow rate, and temperature distribution throughout the entire liquid cooling system, and provide theoretical basis for the optimization design of the liquid cooling system
2. Design Information
- Application conditions
Cooling method: liquid cooling
Cooling medium: pure water
Inlet temperature: 25 ℃
Inlet flow rate: 10L/min
Power distribution: as shown in the following figure
3. Thermal simulation model

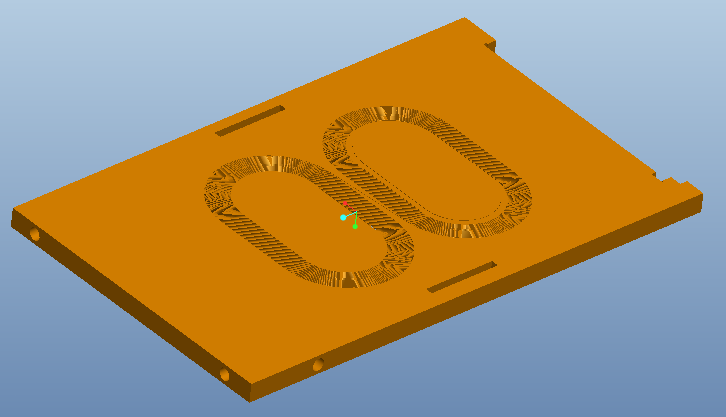

Thermal analysis model
4. Scheme and simulation
1. Original plan
Description of Liquid Cooling Plate Pipeline

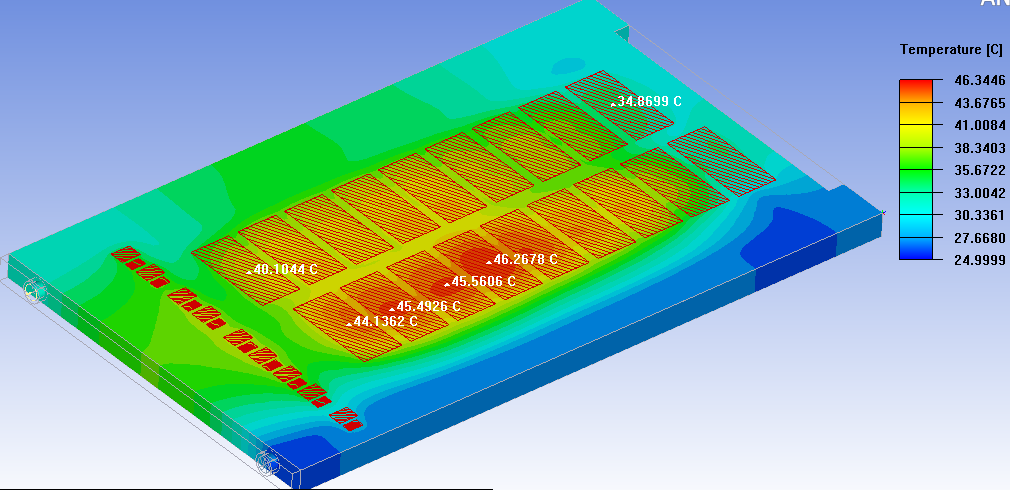

Cloud map of surface temperature of liquid cooled plate

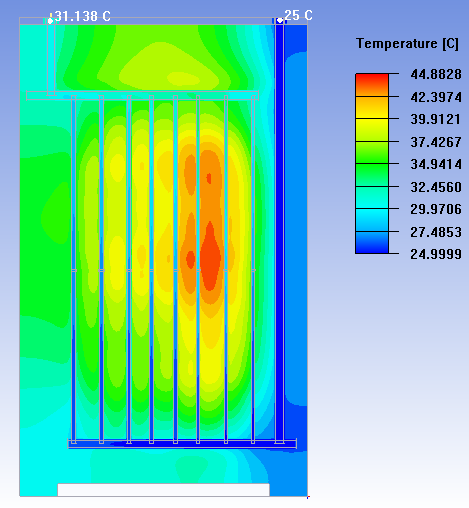

Profile temperature distribution
Pressure distribution of liquid cooling plate
2. Optimization plan

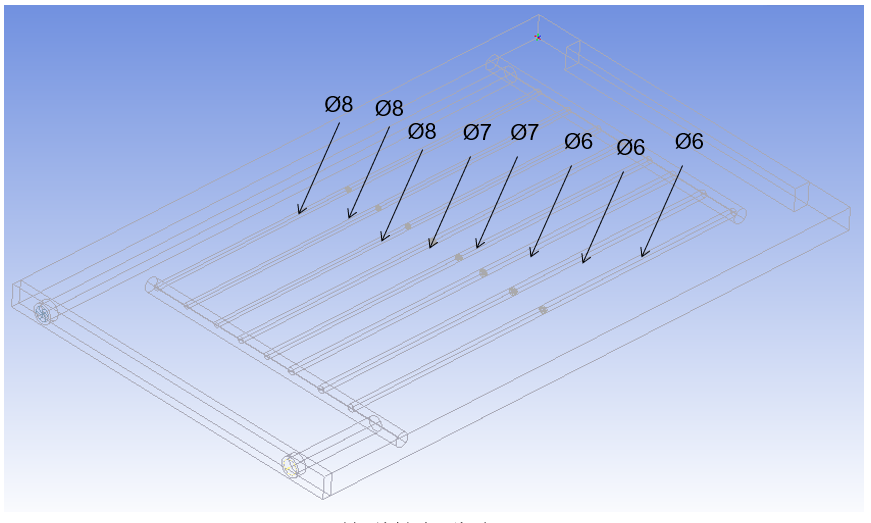

Description of Liquid Cooling Plate Pipeline

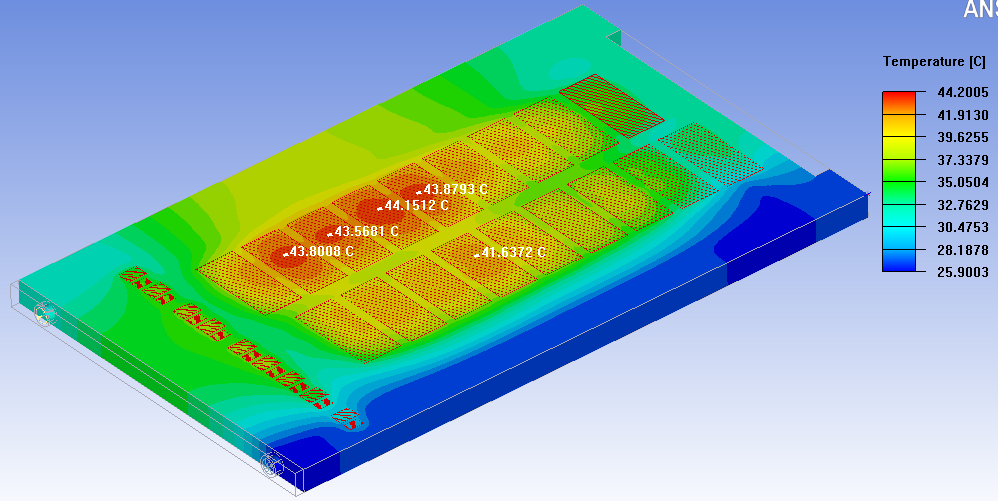

Cloud map of surface temperature of liquid cooled plate

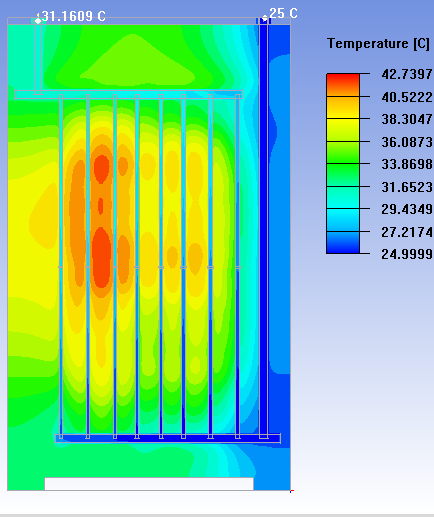

Profile temperature distribution

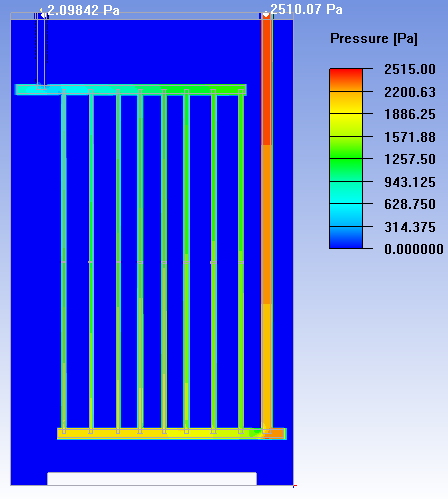

Pressure distribution of liquid cooling plate
5. Conclusion
Summary of simulation data
| Serial Number | Scheme | Inlet water temperature | Export temperature rise | Maximum temperature of cold plate | Flow resistance |
| 1 | Original scheme | 25℃ | 6.1℃ | 46.26℃ | 2548Pa |
| 2 | Optimization plan for pipe diameter | 25℃ | 6.1℃ | 44.15℃ | 2510Pa |
Conclusion&Suggestions
According to simulation analysis, the temperature distribution of the liquid cooling plate is shown in the table above. After optimizing the diameter of the parallel flow channels inside the liquid cooling plate using scheme 2 parameters, the maximum temperature of the liquid cooling plate decreased by 2 degrees, and the flow resistance slightly decreased. The optimized scheme is more optimal.
