3400W Skived fin heat sink thermal solution
Jan 03,2025
Mode:Power 3*300W+6*420W=3420W;
Al1060 + Heat pipes

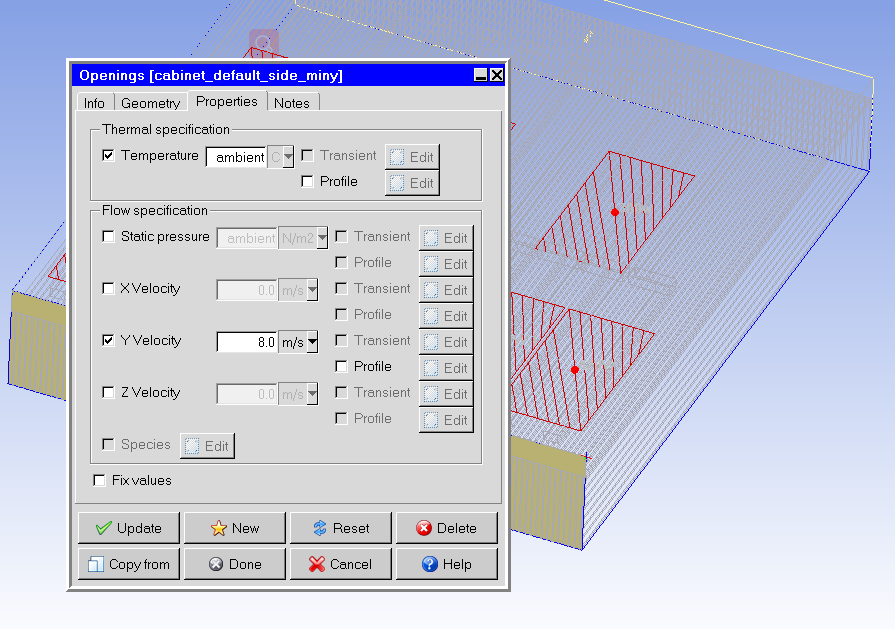

Input flow rate 8m/s
Environment 35℃
The Max temperature of heat sink surface is below 85 ℃

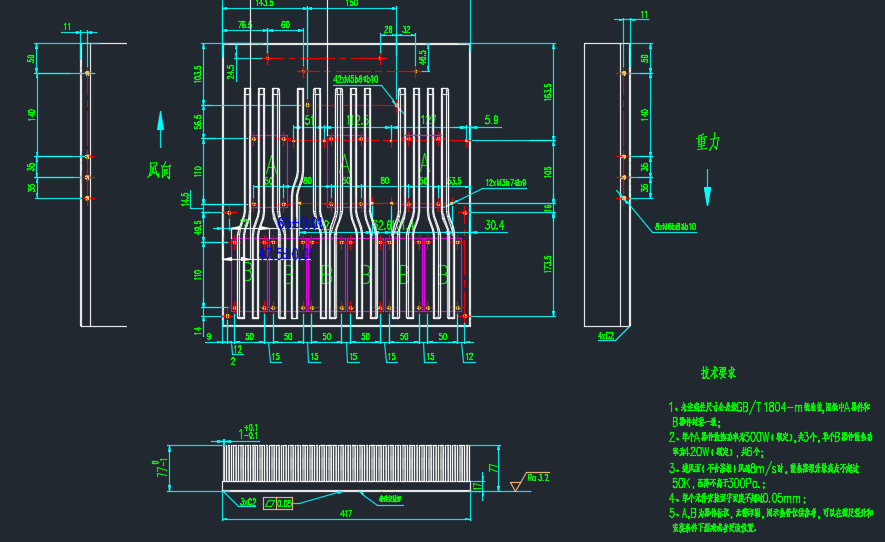

Customer's original drawings and designs
Ansys16.0 design model

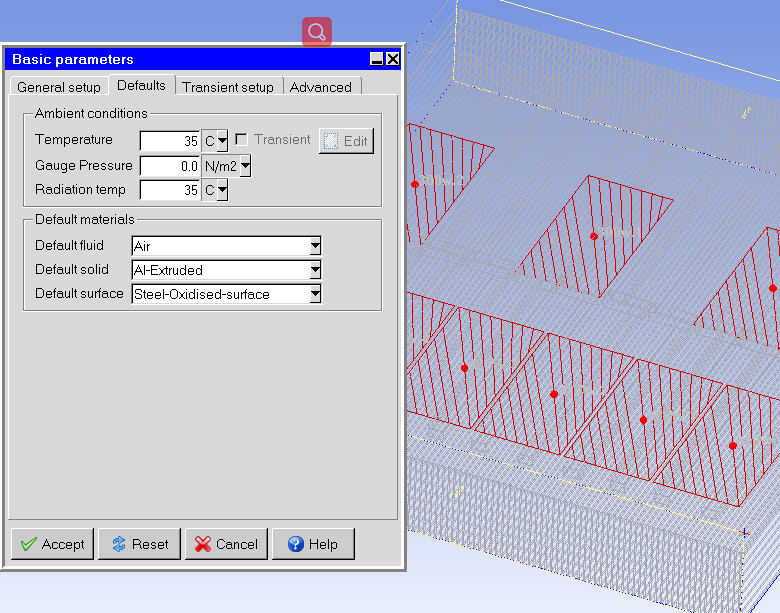

Ambient temperature 35 ℃
Thermal radiation is not considered
Laminar flow regime
Operating pressure 101325N/m2 on Natural convection
Input flow 8m/s

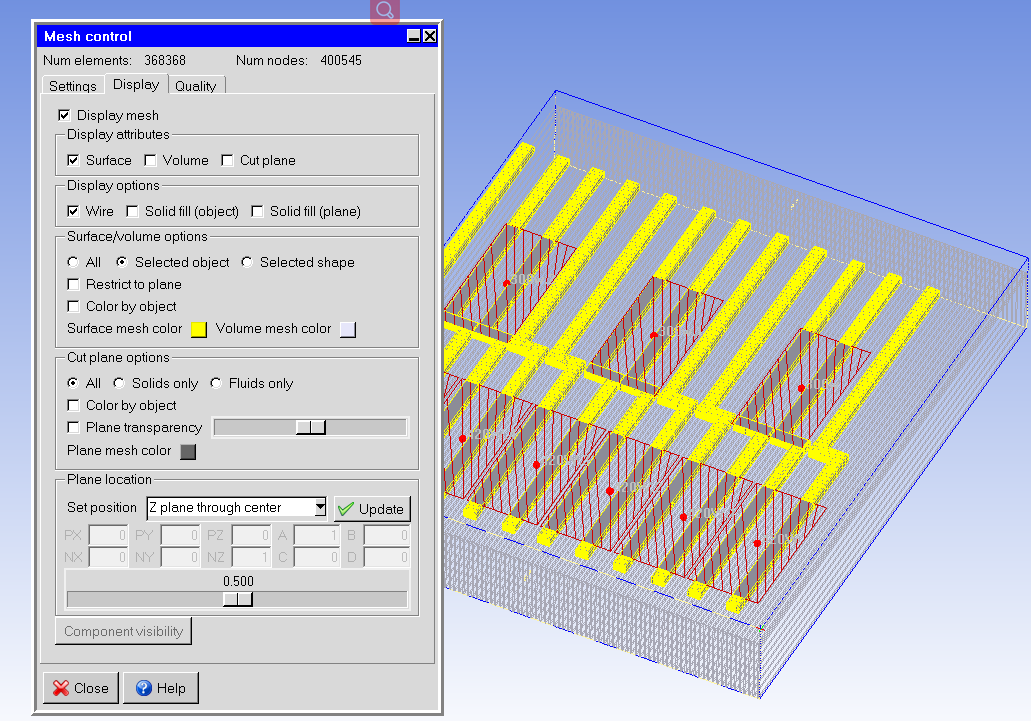

The number of meshes is 400545
Set uniform mesh params
Mesh assemblies separately
Allow multi-level meshing
Allow minimum gap changes

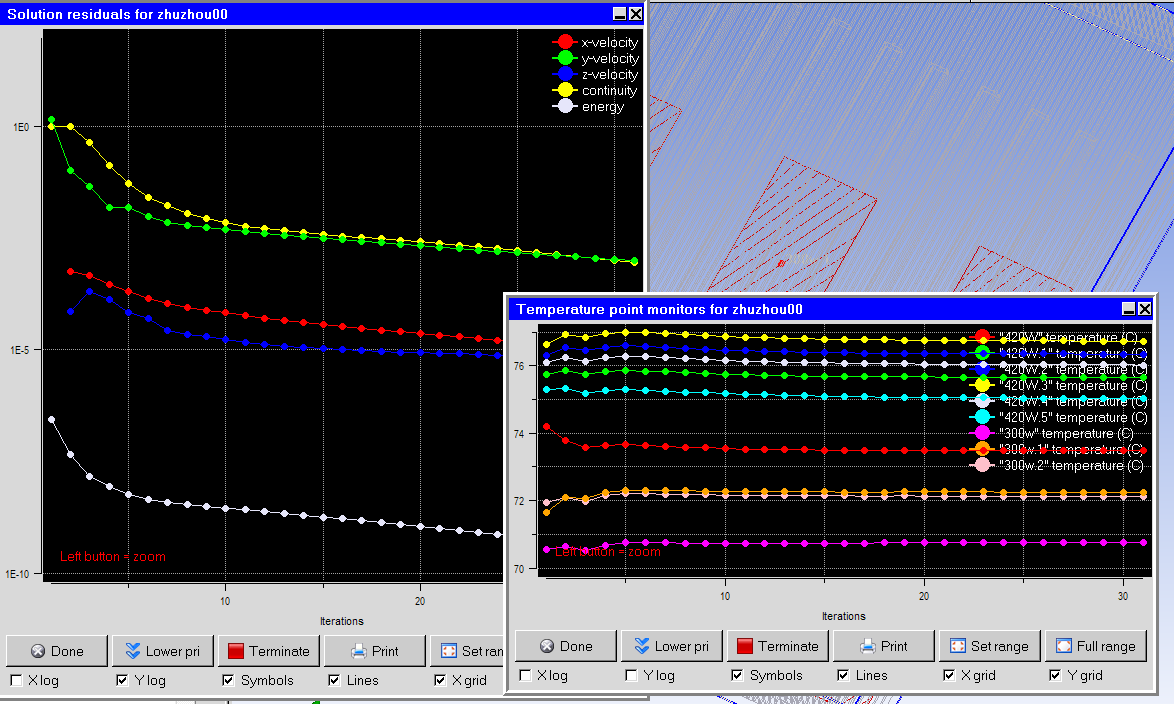

Run the solution and get the function curves
The Max temperature of heat sink surface is 76.9℃

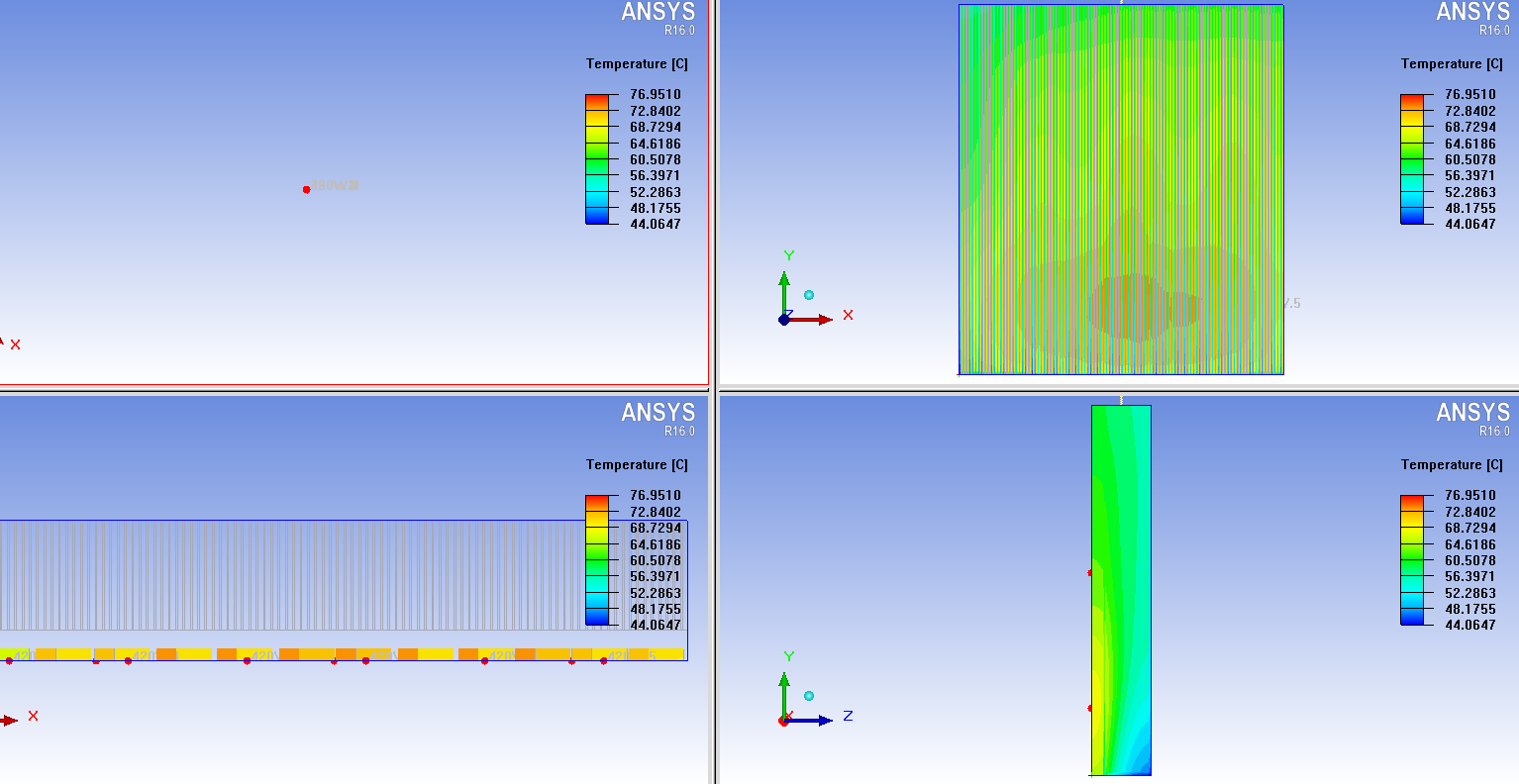

Orient positive X,Y,Z Temperature

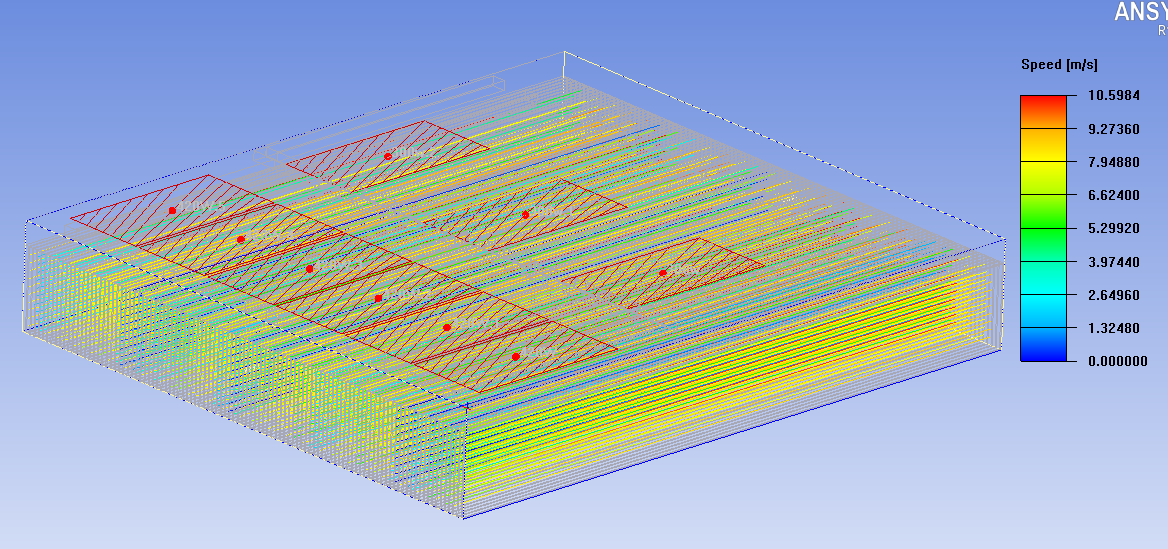

Fan Speed distribution
The maximum speed is 10.58m/s

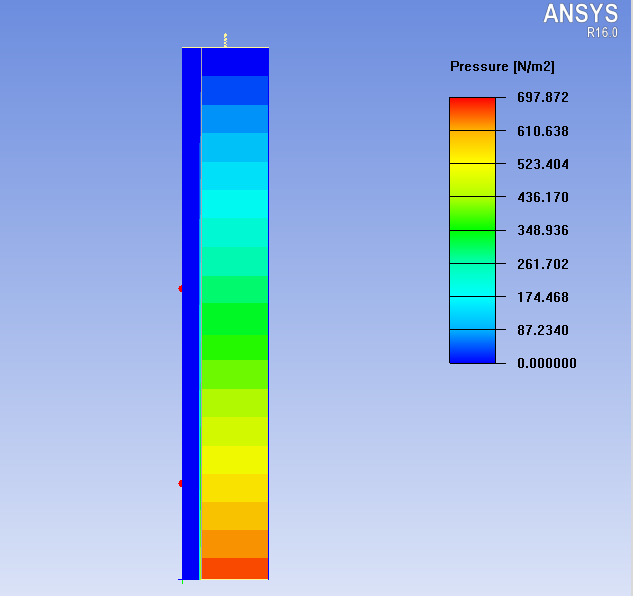

Heat sink pressure distribution
The maximum differential pressure is 697N/m2
The results:
Used the simple model method, the result will be different from the actual module.
The Max temperature of heat sink surface is below 76.9 ℃,△T=76.9-35=41.9 ℃
