LED Liquid Cooling Solution for Temperature Control Box Using Copper Tube Liquid Cold Plate
The LED liquid cooling solution for the temperature control box, leveraging the copper tube liquid cold plate, offers an efficient and reliable thermal management approach crucial for maintaining the optimal performance and longevity of LEDs.

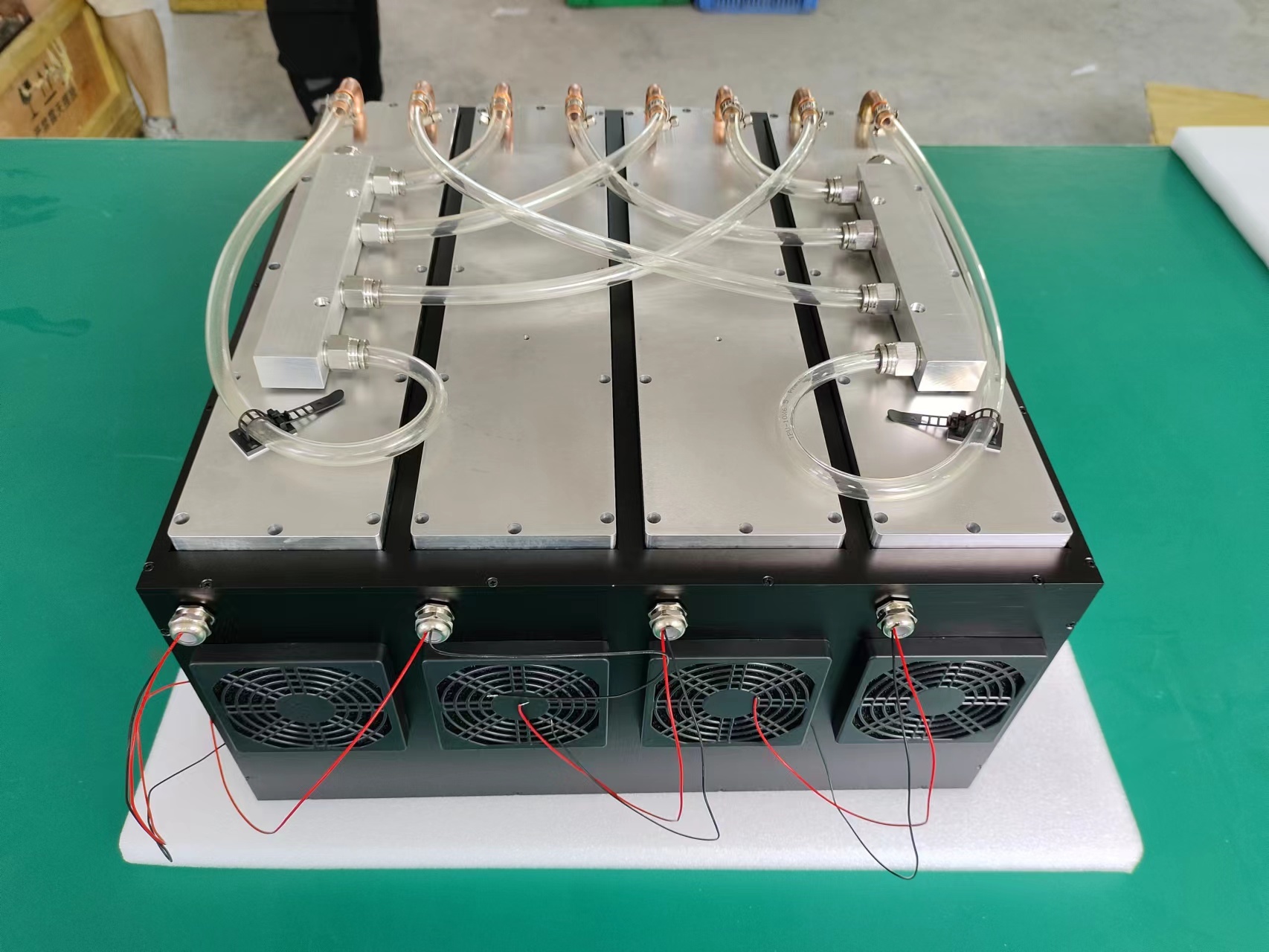

The core component of this solution is the copper tube liquid cold plate. Copper, renowned for its excellent thermal conductivity, is ideal for rapidly transferring heat. The cold plate is intricately designed with embedded copper tubes through which a coolant fluid circulates. When LEDs within the temperature control box generate heat during operation, the copper tubes quickly absorb this thermal energy and conduct it to the cold plate. The coolant flowing through the tubes then carries away the absorbed heat, facilitating heat dissipation.
The coolant used in this system is typically a liquid with good heat - transfer properties, such as water or a water - glycol mixture. A pump is integrated into the system to ensure continuous circulation of the coolant. This closed - loop circulation allows the coolant to be cooled and reused, maintaining a consistent cooling effect.
Temperature sensors are strategically placed near the LEDs to monitor the temperature in real - time. The data collected by these sensors is transmitted to a control system. Based on the temperature readings, the control system can adjust various parameters of the cooling system, such as the flow rate of the coolant by regulating the pump speed. This intelligent adjustment ensures that the LEDs operate within an optimal temperature range, preventing overheating which could lead to performance degradation, color shift, or even premature failure.
This cooling solution provides several significant advantages. Firstly, it offers high - efficiency heat dissipation, enabling the LEDs to maintain stable luminous output and color quality. Secondly, the use of the copper tube liquid cold plate ensures a more uniform temperature distribution across the LED surface, reducing the risk of hot - spot formation. Additionally, the closed - loop nature of the liquid cooling system protects the LEDs from dust and contaminants, enhancing the overall reliability of the temperature control box.
This solution finds extensive applications in various fields. In high - power LED lighting systems, such as large - scale outdoor lighting and stadium lights, it effectively manages the substantial heat generated. It is also highly suitable for LED display screens, especially large - format outdoor displays, where stable operation is crucial for maintaining image quality. In the automotive industry, it can be used for high - performance LED headlights, ensuring consistent illumination under different driving conditions. Overall, the copper tube liquid cold plate - based LED liquid cooling solution is a robust and versatile thermal management solution for temperature control boxes housing LEDs
