1. Electric Vehicle (EV) Battery Packs

• Application: EV batteries generate significant heat during charging and discharging, which must be managed to avoid thermal runaway, capacity degradation, and range reduction.
• Role of Copper Cold Plates:
  • Embedded copper tubes are integrated into battery pack cooling plates, directly contacting cells to absorb heat.
  • High thermal conductivity of copper ensures rapid heat transfer to the coolant (e.g., water - glycol), maintaining uniform temperature distribution (typically within ±2°C) across hundreds of cells.
  • Example: Major EV manufacturers like Tesla and BYD use copper - based liquid cooling systems to extend battery lifespan and support fast charging (e.g., 80% charge in 30 minutes).

2. Utility-Scale Energy Storage Systems (ESS)

• Application: Large-scale battery storage farms (e.g., lithium-ion or flow batteries) for grid stabilization, renewable energy buffering, or peak load shifting.
• Role of Copper Cold Plates:
  • Modular copper cold plates are used in racks of battery modules to manage heat from thousands of cells.
  • The compact design of embedded tubes saves space in containerized ESS setups, crucial for maximizing energy density in limited footprints.
  • Example: Projects like Tesla’s Megapack or Fluence’s storage systems rely on liquid cooling with copper components to maintain efficiency in extreme climates (e.g., desert heat or subzero winters).

3. Data Center Backup Power Systems

• Application: Uninterruptible power supply (UPS) systems and backup batteries in data centers require precise thermal management to ensure reliability during outages.
• Role of Copper Cold Plates:
  • Copper cold plates cool lead-acid or lithium-ion batteries in UPS units, preventing overheating from continuous standby or rapid discharge during power failures.
  • Efficient heat dissipation via copper tubes helps data centers comply with strict uptime standards (e.g., 99.999% availability) while minimizing maintenance costs.

4. Renewable Energy Integration (Solar/Wind)

• Application: Battery storage systems paired with solar farms or wind turbines to store excess energy and stabilize grid supply.
• Role of Copper Cold Plates:
  • In off-grid or microgrid setups, copper-cooled batteries handle cyclic charging/discharging (e.g., daily solar energy storage), reducing thermal stress and extending cycle life (e.g., from 3,000 to 5,000 cycles).
  • Example: Remote solar-plus-storage systems in rural areas use copper liquid cooling to operate reliably in high-temperature environments without air conditioning.

5. Industrial and Marine Applications

• Application: Heavy-duty machinery, marine vessels, or electric commercial vehicles (e.g., buses, trucks) with large battery systems.
• Role of Copper Cold Plates:
  • Copper’s durability (corrosion resistance in saltwater or harsh industrial environments) makes it ideal for marine EVs or offshore energy storage.
  • In mining or construction, copper-cooled batteries power electric excavators or haul trucks, ensuring consistent performance in dusty, high-vibration conditions.

6. Aerospace and Defense

• Application: High-performance energy storage systems for drones, military vehicles, or aircraft backup power.
• Role of Copper Cold Plates:
  • Lightweight yet robust copper cold plates meet strict weight and reliability standards for aerospace applications (e.g., drone batteries requiring rapid cooling during prolonged flights).
  • Defense systems use copper liquid cooling to maintain battery performance in extreme temperatures (e.g., -40°C to 85°C), ensuring mission-critical reliability.

Key Advantages in Real-World Use

• Thermal Consistency: Copper’s efficiency ensures batteries operate within optimal temperature ranges (25–40°C for lithium-ion), avoiding premature degradation.
• Safety: Reduced hotspots lower the risk of thermal runaway, a critical factor in EV and grid-scale storage.
• Scalability: Modular copper cold plates adapt to small (e.g., EV) and large (e.g., grid-scale) systems, simplifying design across industries.
• Cost Efficiency: Long lifespan and low maintenance (due to copper’s durability) reduce total cost of ownership compared to air-cooling or alternative materials like aluminum.

Challenges and Innovations

• Weight in Mobile Applications: While copper is heavier than aluminum, its superior thermal performance often justifies the trade-off in EVs and aerospace.

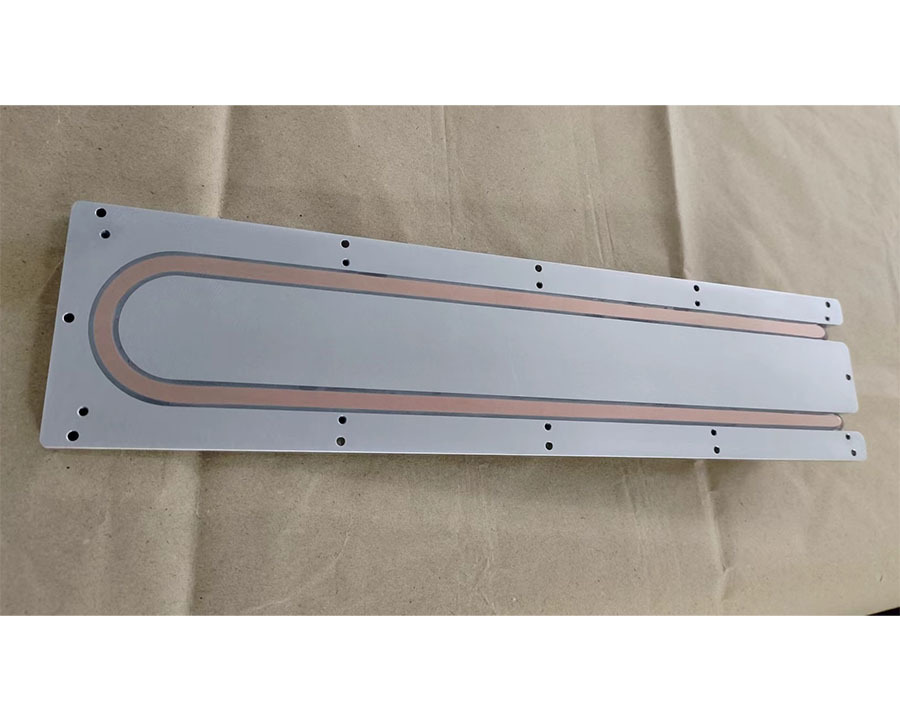

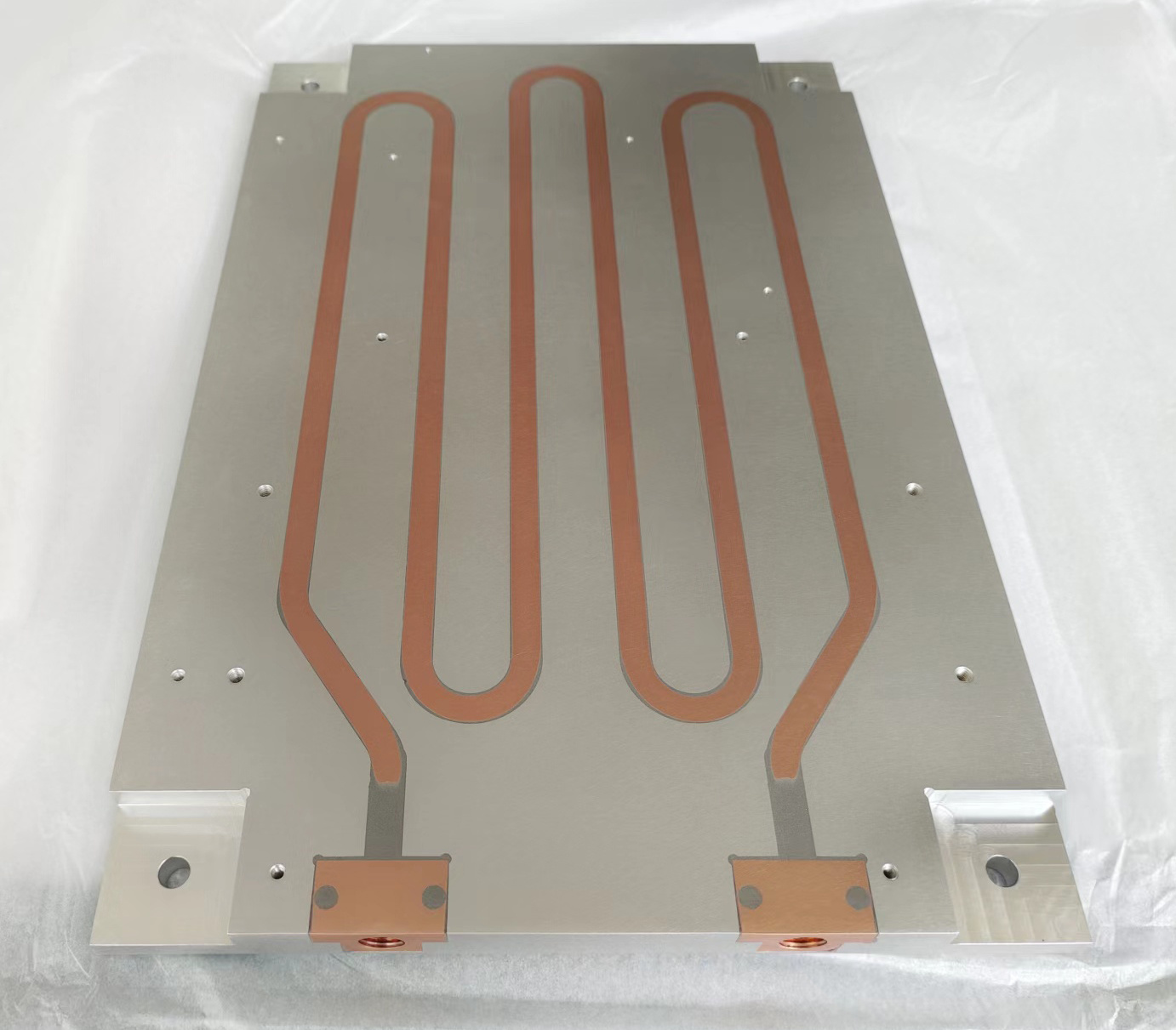

• Future Trends: Hybrid designs (e.g., copper tubes with aluminum plates) balance cost and performance, while advanced brazing techniques improve tube-plate adhesion for better heat transfer

In summary, embedded copper tube liquid cold plates are a cornerstone of modern energy storage thermal management, enabling safe, efficient, and scalable solutions across diverse industries.
